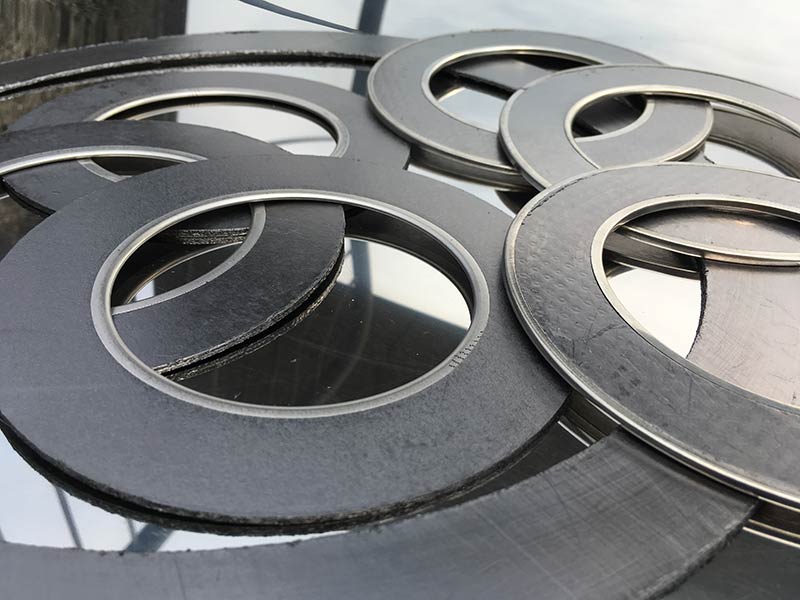

graphite products - gaskets

Graphite Products

RGS 1

RGS 1

RGS 1 is a high purity graphite laminate sheet with a Nickel reinforcement. This product is suitable for general sealing applications however is specifically good for use with steam and most chemicals with the exception of strong oxidising media. Of the three Flexicarb RGS products, RGS1 is the easiest to cut which can be beneficial for on site gasket production

Download Datasheet

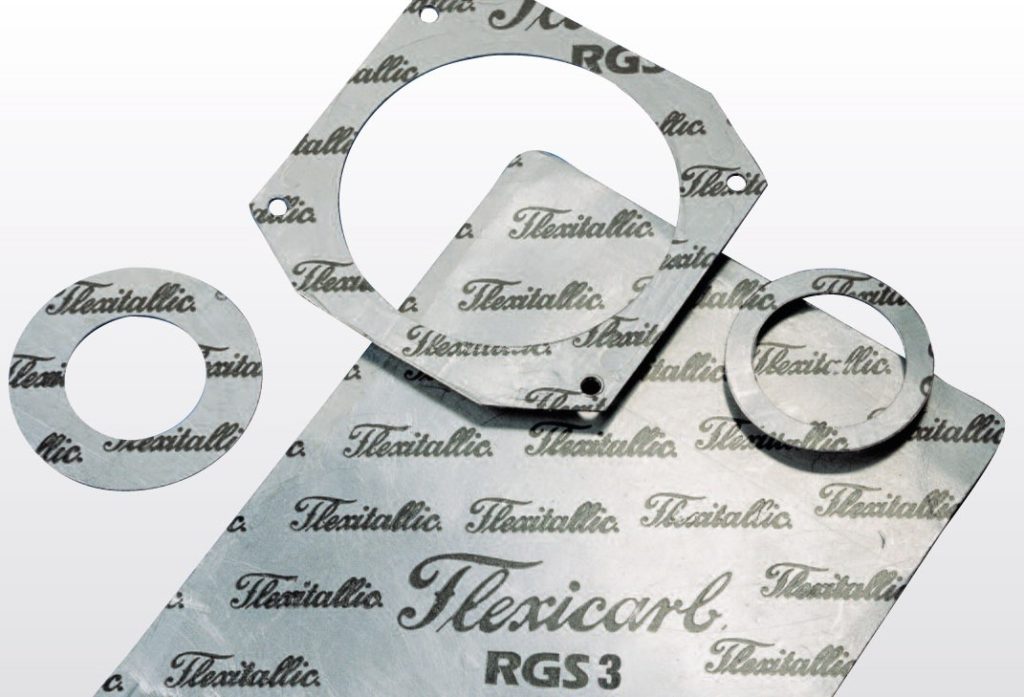

RGS3

RGS 3

RGS 3 is a high purity reinforced graphite with a tanged stainless-steel core. RGS3 is recommended for applications involving high sealing stresses. The addition of the tanged steel reinforcement improves the materials robustness, great where high blowout resistance is required. RGS 3 is suitable for a wide range of media however is not recommended for sealing chemical oxidising agents.

Download Datasheet

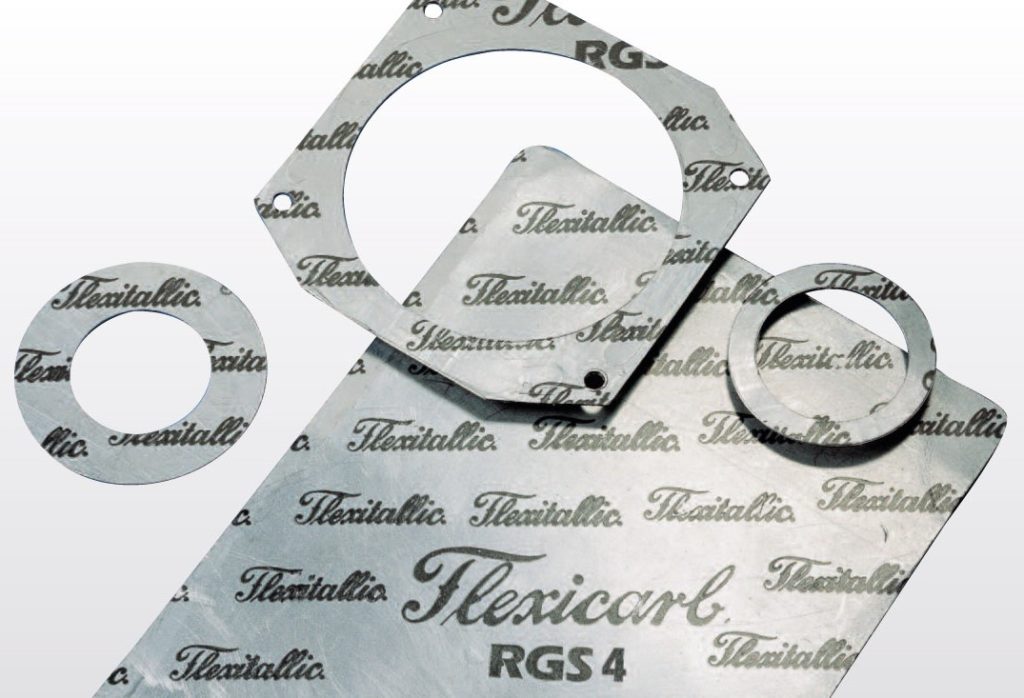

RGS4

RGS 4

RGS4 is an high purity reinforced graphite with a flat stainless steel reinforcement. Unlike the RGS3, RGS3 is mechanically bonded onto its steel insert enabling it to be cut to suit narrower flanges. RGS4 is suitable for a wide range of media however is not recommended for sealing chemical oxidising agents.

Download Datasheet

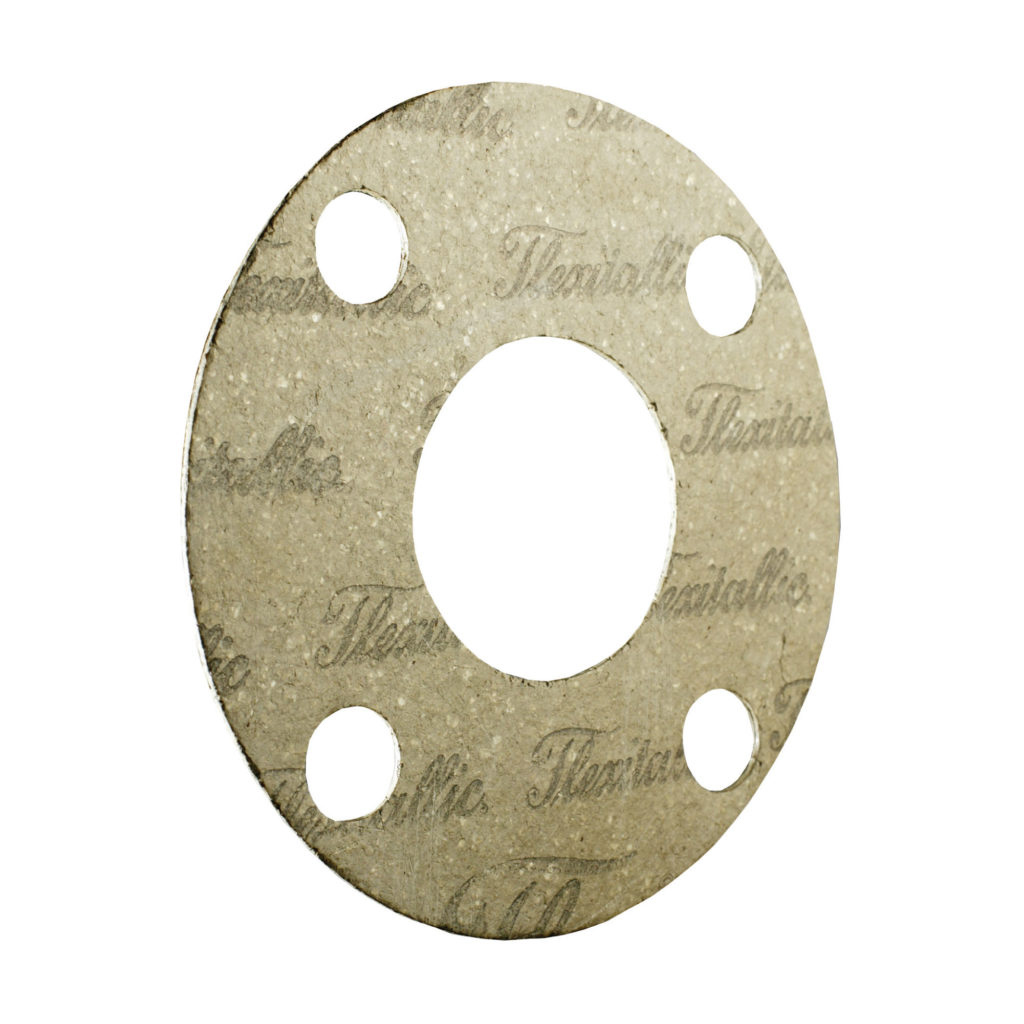

Thermiculate 815

Thermiculate 815

Thermiculite 815 is a high temperature, chemically resistant sheet sealing material comprising of exfoliated vermiculite reinforced with a tanged
stainless steel core.

Download Datasheet
