Measuring Your Polyurethane Sleeve / Versa-chute®

To provide an accurate quotation for your polyurethane sleeve or Versa-chute®, please fill in the details below and forward them to your nearest Henry Gallacher branch.

If your chute differs in shape or design from the example shown, kindly supply a detailed dimensional drawing or sketch to assist us in preparing your quote.

Instructions for Measuring a Polyurethane Sleeve / Versa-chute®

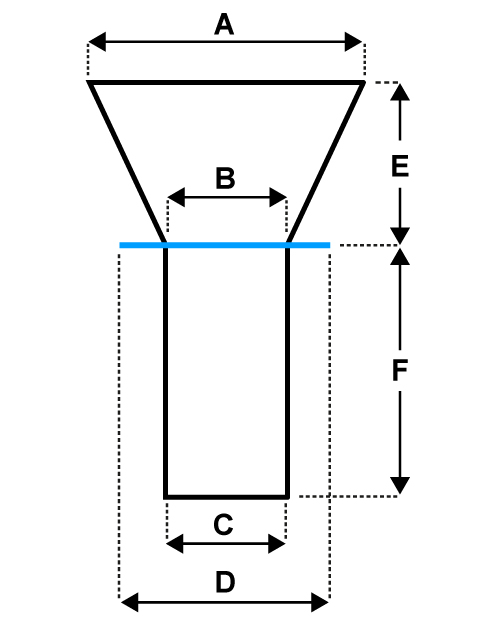

How to Measure a Polyurethane Sleeve / Versa-chute®
Dimension Description
A: Upper Inside Diameter
B: Flange Height Inside Diameter
C: Lower Inside Diameter
D: Support Flange Diameter
E: Upper Section Height
F: Lower Section Height

Additionally, please specify the desired material grades for both the body and flange where possible:
