TICO S - Versatile Mounting Pad

TICO S - versatile mounting pad is crafted from synthetic rubber bonded cork, serving as our preferred solution for machinery mounting. It endures substantial dynamic and static pressures without deterioration, effectively minimising vibration and noise transmission. Henry Gallacher offers TICO S mounting pads, collars, and washers with prompt service and expert advice.

Typical Uses

Ideal for applications including lifts, conveyors, generators, refrigeration systems, vacuum pumps, and compressors. It suits machinery with internal imbalance such as lathes, pillar drills, shapers, and saws, as well as equipment subject to vertical shock loads like power presses, slotting machines, guillotines, and crushers.

Main Benefits

Operates reliably between -40°C and +100°C.
Maximum load capacity of 0.5 MN/m².
Minimises vibration while allowing quick installation and flexible machine positioning.
Removes the need for anchor bolts, preventing floor damage and reducing noise transmission.
Maintains performance throughout its lifespan and is compatible with all machine bases.

Product Sizes

Product Code - Sheet Size (mm)				Thickness (mm)
1200 x 1200	1200 x 900	1200 x 600	1200 x 300	-
-	TICOS-0.75	-	-	0.75
-	TICOS-1.5	-	-	1.5
-	TICOS-3	TICOS-600-3	TICOS-300-3	3
TICOS-6	TICOS-900-6	TICOS-600-6	TICOS-300-6	6
TICOS-9.5	TICOS-900-9.5	TICOS-600-9.5	TICOS-300-9.5	9.5
TICOS-12.5	TICOS-900-12.5	TICOS-600-12.5	TICOS-300-12.5	12.5
TICOS-19	TICOS-900-19	TICOS-600-19	TICOS-300-19	19
TICOS-25	TICOS-900-25	TICOS-600-25	TICOS-300-25	25

TICO S Collars

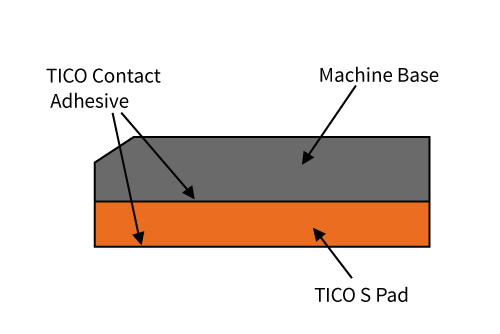

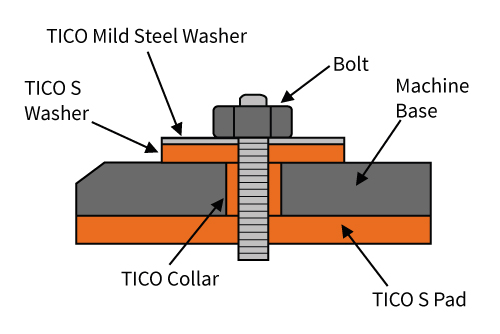

TICO S collars complement TICO S pads and mild steel washers to mount machinery securely. Designed to encircle bolts, they help minimise noise and vibration transmission. Available in various sizes, these collars come in packs of six. For detailed guidance on mounting techniques, please refer to the diagrams below.

Collar Dimensions:

50mm length x 3mm wall thickness.

Stock Information:

Product Code	Bolt Size*	Pack Quantity
TICOSC-M10-3	M10	6
TICOSC-M12-3	M12	6
TICOSC-M14-3	M14	6
TICOSC-M16-3	M16	6
TICOSC-M18-3	M18	6
TICOSC-M20-3	M20	6

*Additional sizes can be supplied on request.

TICO S Washers & Mild Steel Washers

Available in various sizes and supplied in packs of 10, TICO S washers and mild steel washers are designed to work alongside TICO S collars to secure machinery using floor bolts.

TICO S Washer Dimensions:	6mm thickness with an outer diameter three times the nominal bolt size.
Mild Steel Washer Dimensions:	3mm thickness.

Stock Details:

TICO S Washer (Product Code)	Mild Steel Washer (Product Code)	Bolt Size*	Pack Quantity
TICOSW-M10-6	TICOW-M10-3^†	M10	10
TICOSW-M12-6	TICOW-M12-3	M12	10
TICOSW-M14-6	TICOW-M14-3	M14	10
TICOSW-M16-6	TICOW-M16-3	M16	10
TICOSW-M18-6	TICOW-M18-3	M18	10
TICOSW-M20-6	TICOW-M20-3	M20	10
TICOSW-M24-6	TICOW-M24-3	M24	10
TICOSW-M26-6	TICOW-M26-3	M26	10
