GL1B - Precision Machined Chain Guide Wear Strip

The GL1B wear strip profile is expertly machined to serve as a guide rail compatible with DIN 8187 Simplex roller chains. It is offered in configurations of either a single or dual component design.

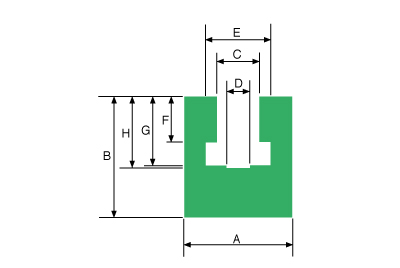

Dimensional Diagram (Single Component):

Stock Range:

We stock a wide range of sizes. Please consult the dimensional diagram above alongside the detailed measurements in the table below.

Product Code / Chain No. (Single Component)	A	B	C	D	E	F	G	H	Chain Pitch
GL1B-0531	20	25	6.6	4	9.3	3.8	5.8	6.8	3/8" x 5/32"
GL1B-06B1	20	25	6.6	4	9.3	5.6	8.7	9.9	3/8" x 7/32"
GL1B-0831	20	25	8.0	4	10.8	4.7	7.4	8.3	½" x 3/16"
GL1B-0841	24	30	8.0	5	11.8	6.3	9.8	11.2	½" x ¼"
GL1B-0851	24	30	8.7	5	12.8	6.3	10.2	11.3	½" x ¼
GL1B-08B1	24	30	8.7	5	12.8	7.6	11.5	12.7	½" x 5/16"
GL1B-0861	30	30	10.4	6	15.4	6.3	10.3	11.7	5/8" x ¼"
GL1B-10B1	30	35	10.4	6	15.4	9.5	13.5	14.8	5/8" x 3/8"
GL1B-12B1	40	35	12.3	7	16.9	11.5	15.9	17.5	¾" x 7/16"
GL1B-16B1	40	45	16.1	9	24.4	16.0	25.7	26.8	1" x 17mm
GL1B-20B1	50	50	19.3	11	27.5	19.0	29.3	31.2	1¼ x ¾"
GL1B-24B1	60	60	25.7	16	36.5	24.5	38.2	40.1	1½" x 1"
GL1B-28B1	60	70	28.3	17	41.5	30.0	46.9	48.9	1¾" x 31mm
GL1B-32B1	70	75	29.6	19	44.5	30.0	47.3	50.5	2" x 31mm

Product Code / Chain No. (Single Component)	A	B	C	D
GL1B-0531	20	25	6.6	4
GL1B-06B1	20	25	6.6	4
GL1B-0831	20	25	8.0	4
GL1B-0841	24	30	8.0	5
GL1B-0851	24	30	8.7	5
GL1B-08B1	24	30	8.7	5
GL1B-0861	30	30	10.4	6
GL1B-10B1	30	35	10.4	6
GL1B-12B1	40	35	12.3	7
GL1B-16B1	40	45	16.1	9
GL1B-20B1	50	50	19.3	11
GL1B-24B1	60	60	25.7	16
GL1B-28B1	60	70	28.3	17
GL1B-32B1	70	75	29.6	19

Product Code / Chain No. (Single Component)	E	F	G	H
GL1B-0531	9.3	3.8	5.8	6.8
GL1B-06B1	9.3	5.6	8.7	9.9
GL1B-0831	10.8	4.7	7.4	8.3
GL1B-0841	11.8	6.3	9.8	11.2
GL1B-0851	12.8	6.3	10.2	11.3
GL1B-08B1	12.8	7.6	11.5	12.7
GL1B-0861	15.4	6.3	10.3	11.7
GL1B-10B1	15.4	9.5	13.5	14.8
GL1B-12B1	16.9	11.5	15.9	17.5
GL1B-16B1	24.4	16.0	25.7	26.8
GL1B-20B1	27.5	19.0	29.3	31.2
GL1B-24B1	36.5	24.5	38.2	40.1
GL1B-28B1	41.5	30.0	46.9	48.9
GL1B-32B1	44.5	30.0	47.3	50.5

Product Code / Chain No. (Single Component)	Chain Pitch
GL1B-0531	3/8" x 5/32"
GL1B-06B1	3/8" x 7/32"
GL1B-0831	½" x 3/16"
GL1B-0841	½" x ¼"
GL1B-0851	½" x ¼
GL1B-08B1	½" x 5/16"
GL1B-0861	5/8" x ¼"
GL1B-10B1	5/8" x 3/8"
GL1B-12B1	¾" x 7/16"
GL1B-16B1	1" x 17mm
GL1B-20B1	1¼ x ¾"
GL1B-24B1	1½" x 1"
GL1B-28B1	1¾" x 31mm
GL1B-32B1	2" x 31mm

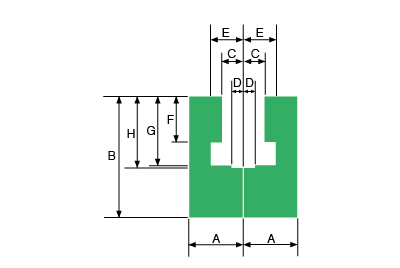

Dimensional Diagram (Dual Component):

Stock Range:

A broad selection of sizes is available. Please refer to the dimensional diagram above and the corresponding measurements in the table below.

Product Code / Chain No. (Dual Component)	A	B	C	D	E	F	G	H	Chain Pitch
GL1B2-0531	10	25	3.3	2	4.65	3.8	5.8	6.8	3/8" x 5/32"
GL1B2-06B1	10	25	3.3	2	4.65	5.6	8.7	9.9	3/8" x 7/32"
GL1B2-0831	10	25	4.0	2	5.4	4.7	7.4	8.3	½" x 3/16"
GL1B2-0841	12	30	4.0	2.5	5.9	6.3	9.8	11.2	½" x ¼"
GL1B2-0851	12	30	4.35	2.5	6.4	6.3	10.2	11.3	½" x ¼
GL1B2-08B1	12	30	4.35	2.5	6.4	7.6	11.5	12.7	½" x 5/16"
GL1B2-0861	15	30	5.2	3	7.7	6.3	10.3	11.7	5/8" x ¼"
GL1B2-10B1	15	35	5.2	3	7.7	9.5	13.5	14.8	5/8" x 3/8"
GL1B2-12B1	20	35	6.15	3	8.45	11.5	15.9	17.5	¾" x 7/16"
GL1B2-16B1	20	45	8.05	9	12.2	16.0	25.7	26.8	1" x 17mm
GL1B2-20B1	25	50	9.65	5.5	13.75	19.0	29.3	31.2	1¼ x ¾"
GL1B2-24B1	30	60	12.85	8	18.25	24.5	38.2	40.1	1½" x 1"
GL1B2-28B1	30	70	14.15	8.5	20.75	30.0	46.9	48.9	1¾" x 31mm
GL1B2-32B1	35	75	14.8	9.5	22.25	30.0	47.3	50.5	2" x 31mm

Product Code / Chain No. (Dual Component)	A	B	C	D
GL1B2-0531	10	25	3.3	2
GL1B2-06B1	10	25	3.3	2
GL1B2-0831	10	25	4.0	2
GL1B2-0841	12	30	4.0	2.5
GL1B2-0851	12	30	4.35	2.5
GL1B2-08B1	12	30	4.35	2.5
GL1B2-0861	15	30	5.2	3
GL1B2-10B1	15	35	5.2	3
GL1B2-12B1	20	35	6.15	3
GL1B2-16B1	20	45	8.05	9
GL1B2-20B1	25	50	9.65	5.5
GL1B2-24B1	30	60	12.85	8
GL1B2-28B1	30	70	14.15	8.5
GL1B2-32B1	35	75	14.8	9.5

Product Code / Chain No. (Dual Component)	E	F	G	H
GL1B2-0531	4.65	3.8	5.8	6.8
GL1B2-06B1	4.65	5.6	8.7	9.9
GL1B2-0831	5.4	4.7	7.4	8.3
GL1B2-0841	5.9	6.3	9.8	11.2
GL1B2-0851	6.4	6.3	10.2	11.3
GL1B2-08B1	6.4	7.6	11.5	12.7
GL1B2-0861	7.7	6.3	10.3	11.7
GL1B2-10B1	7.7	9.5	13.5	14.8
GL1B2-12B1	8.45	11.5	15.9	17.5
GL1B2-16B1	12.2	16.0	25.7	26.8
GL1B2-20B1	13.75	19.0	29.3	31.2
GL1B2-24B1	18.25	24.5	38.2	40.1
GL1B2-28B1	20.75	30.0	46.9	48.9
GL1B2-32B1	22.25	30.0	47.3	50.5

Product Code / Chain No. (Dual Component)	Chain Pitch
GL1B2-0531	3/8" x 5/32"
GL1B2-06B1	3/8" x 7/32"
GL1B2-0831	½" x 3/16"
GL1B2-0841	½" x ¼"
GL1B2-0851	½" x ¼
GL1B2-08B1	½" x 5/16"
GL1B2-0861	5/8" x ¼"
GL1B2-10B1	5/8" x 3/8"
GL1B2-12B1	¾" x 7/16"
GL1B2-16B1	1" x 17mm
GL1B2-20B1	1¼ x ¾"
GL1B2-24B1	1½" x 1"
GL1B2-28B1	1¾" x 31mm
GL1B2-32B1	2" x 31mm

Manufacture, process and supply plastic, insulation and rubber products to industry

GL1B - Precision Machined Chain Guide Wear Strip

Dimensional Diagram (Single Component):

Dimensional Diagram (Dual Component):
