RBC - Machined Belt Guide Wear Strip

RBC - Machined Belt Guide Wear Strip

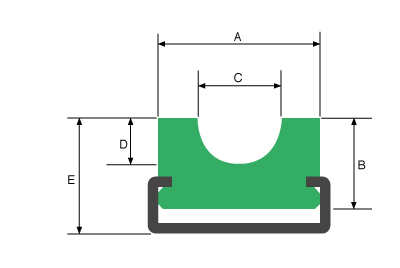

Dimensional Drawing:
RBC Dimensional Drawing

Availability:

Offered in a variety of sizes. Please consult the dimensional drawing above alongside the measurements detailed in the table below.

Product Code A B C
RBC-R50RM5 20 10 6.0
RBC-R63RM6 20 15 8.0
RBC-R80RM8 20 15 10.0
RBC-R95RM10 25 15 12.0
RBC-R125RM12 28 15 14.0
RBC-R150RM15 33 20 18.0
RBC-R180RM18 38 20 20.0
RBC-R200RM20 38 25 22.5
*Carrier profiles are not included with the wear strips by default. Please specify if you require them when making an enquiry.
