GR1C - Machined Chain Guide Wear Strip

The GR1C machined wear strip is designed as a guide rail compatible with DIN 8187 Simplex roller chains. We can also provide this profile with an optional carrier profile upon request.

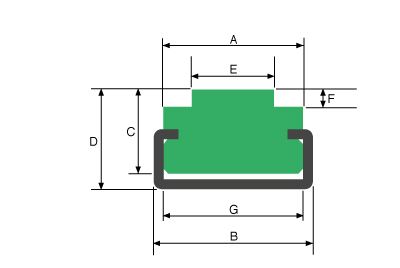

Dimensional Drawing:

Availability:

We stock a wide range of sizes. Please consult the dimensional drawing above alongside the specifications listed in the table below.

Product Code / Chain No.	A	B	C	D	E	F	G
GR1C-0831A	20	24	10	11	4.7	1.6	22
GR1C-0831B	17	20	15	17	4.7	1.6	17
GR1C-0841C	20	20	10	15	6.2	2.1	17
GR1C-08B1D	20	20	10	15	7.5	2.2	17
GR1C-0851E	17	20	15	17	6.2	2.1	17
GR1C-08B1F	17	20	15	17	7.5	2.2	17
GR1C-0861G	17	20	15	17	6.3	2.6	17
GR1C-10B1H	17	20	15	17	9.3	2.6	17
GR1C-12B1I	20	20	15	17	11.3	3.0	17
GR1C-12B1J	24	28	15	18	11.3	3.0	24
GR1C-16B1K	24	28	15	18	16.5	3.5	24
GR1C-20B1L	28	28	15	18	19.0	4.2	24
GR1C-24B1M	33	38	25	30	24.7	5.5	33
GR1C-28B1N	38	38	25	30	30.1	6.8	33
GR1C-32B1O	38	38	25	30	30.1	7.7	33

Product Code / Chain No.	Carrier Profile*	Chain Pitch
GR1C-0831A	WSC-C2452	½" x 3/16"
GR1C-0831B	WSC-C2010	½" x 3/16"
GR1C-0841C	WSC-C2010	½" x ¼"
GR1C-08B1D	WSC-C2010	½" x 5/16"
GR1C-0851E	WSC-C2010	½" x ¼"
GR1C-08B1F	WSC-C2010	½" x 5/16"
GR1C-0861G	WSC-C2010	5/8" x ¼"
GR1C-10B1H	WSC-C2010	5/8" x 3/8"
GR1C-12B1I	WSC-C2010	¾" x 7/16"
GR1C-12B1J	WSC-C2812	¾" x 7/16"
GR1C-16B1K	WSC-C2812	1" x 17mm
GR1C-20B1L	WSC-C2812	1¼" x¾"
GR1C-24B1M	WSC-C3818	1½" x 1"
GR1C-28B1N	WSC-C3818	1¾" x 31mm
GR1C-32B1O	WSC-C3818	2" x 31mm

Product Code / Chain No.	A	B	C	D	E	F	G	Carrier Profile*	Chain Pitch
GR1C-0831A	20	24	10	11	4.7	1.6	22	WSC-C2452	½" x 3/16"
GR1C-0831B	17	20	15	17	4.7	1.6	17	WSC-C2010	½" x 3/16"
GR1C-0841C	20	20	10	15	6.2	2.1	17	WSC-C2010	½" x ¼"
GR1C-08B1D	20	20	10	15	7.5	2.2	17	WSC-C2010	½" x 5/16"
GR1C-0851E	17	20	15	17	6.2	2.1	17	WSC-C2010	½" x ¼"
GR1C-08B1F	17	20	15	17	7.5	2.2	17	WSC-C2010	½" x 5/16"
GR1C-0861G	17	20	15	17	6.3	2.6	17	WSC-C2010	5/8" x ¼"
GR1C-10B1H	17	20	15	17	9.3	2.6	17	WSC-C2010	5/8" x 3/8"
GR1C-12B1I	20	20	15	17	11.3	3.0	17	WSC-C2010	¾" x 7/16"
GR1C-12B1J	24	28	15	18	11.3	3.0	24	WSC-C2812	¾" x 7/16"
GR1C-16B1K	24	28	15	18	16.5	3.5	24	WSC-C2812	1" x 17mm
GR1C-20B1L	28	28	15	18	19.0	4.2	24	WSC-C2812	1¼" x ¾"
GR1C-24B1M	33	38	25	30	24.7	5.5	33	WSC-C3818	1½" x 1"
GR1C-28B1N	38	38	25	30	30.1	6.8	33	WSC-C3818	1¾" x 31mm
GR1C-32B1O	38	38	25	30	30.1	7.7	33	WSC-C3818	2" x 31mm

*Carrier profiles are not included with the wear strip by default. Please specify if you require them when making an enquiry.
