VBC - Precision Machined Belt Guide Wear Strip

VBC - Machined Belt Guide Wear Strip

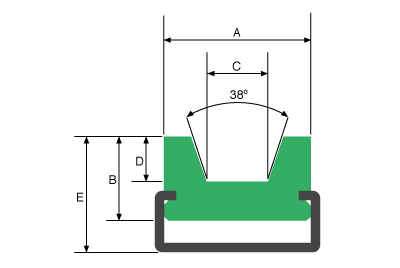

Dimensional Diagram:
VBC Dimensional Drawing

Stock Information:

Offered in a variety of sizes. Please consult the dimensional diagram above alongside the measurements listed in the table below.

Product Code A B C
VBC-R8F 20 10 6.0
VBC-R10Z 20 15 7.2
VBC-R13A 25 18 9.2
VBC-R17B 30 18 11.5
VBC-R20G 30 18 13.5
VBC-R22C 35 25 14.5
VBC-R25H 40 25 16.5
VBC-R32D 60 35 21.0
VBC-R40E 60 35 26.0
*Carrier profiles are not included with the wear strips by default. Please specify your requirements when making an enquiry.
