GL1BC - Precision Machined Chain Guide Wear Strip

The GL1BC profile is expertly machined to serve as a guide rail compatible with DIN 8187 Simplex roller chains. It is offered in both single and two-part configurations, with an optional carrier profile available upon request.

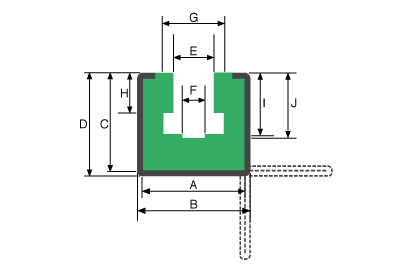

Dimensional Drawing (Single Part):

Stock Availability:

A wide range of sizes is available. Please consult the dimensional drawing above alongside the detailed measurements in the table below.

Product Code / Chain No. (One Part)	A	B	C	D	E	F	G	H	I	J	Carrier Profile**	Chain Pitch
GL1BC-0531U	27	30	22.5	24	6.6	4	9.3	3.8	5.8	6.8	WSC-C3024*	3/8" x 5/32"
GL1BC-06B1U	27	30	22.5	24	6.6	4	9.3	5.6	8.7	9.9	WSC-C3024*	3/8" x 7/32"
GL1BC-0831U	27	30	22.5	24	8.0	4	10.8	4.7	7.4	8.3	WSC-C3024*	½" x 3/16"
GL1BC-0841U	27	30	22.5	24	8.0	5	11.8	6.3	9.8	11.2	WSC-C3024*	½" x ¼"
GL1BC-0851U	27	30	22.5	24	8.7	5	12.8	6.3	10.2	11.3	WSC-C3024*	½" x ¼"
GL1BC-08B1U	27	30	22.5	24	8.7	5	12.8	7.6	11.5	12.7	WSC-C3024*	½" x 5/16"
GL1BC-0861U	27	30	22.5	24	10.4	6	15.4	6.3	10.3	11.7	WSC-C3024*	5/8" x ¼"
GL1BC-10B1U	27	30	22.5	24	10.4	6	15.4	9.5	13.5	14.8	WSC-C3024*	5/8" x 3/8"
GL1BC-12B1U	27	30	22.5	24	12.3	7	16.9	11.5	15.9	17.5	WSC-C3024*	¾" x 7/16"
GL1BC-16B1U	41	45	38.0	40	16.1	9	24.4	16.0	25.7	26.8	WSC-C4540	1" x 17mm
GL1BC-20B1U	41	45	38.0	40	19.3	11	27.5	19.0	29.3	31.2	WSC-C4540	1¼" x ¾"
GL1BC-24B1U	59	65	52.0	55	25.7	16	36.5	24.5	38.2	40.1	WSC-C6555	1½" x 1"
GL1BC-28B1U	59	65	52.0	55	28.3	17	41.5	30.0	46.9	48.9	WSC-C6555	1¾" x 31mm
GL1BC-32B1U	59	65	52.0	55	29.6	19	44.5	30.0	47.3	50.5	WSC-C6555	2" x 31mm

Product Code / Chain No. (One Part)	A	B	C	D	E
GL1BC-0531U	27	30	22.5	24	6.6
GL1BC-06B1U	27	30	22.5	24	6.6
GL1BC-0831U	27	30	22.5	24	8.0
GL1BC-0841U	27	30	22.5	24	8.0
GL1BC-0851U	27	30	22.5	24	8.7
GL1BC-08B1U	27	30	22.5	24	8.7
GL1BC-0861U	27	30	22.5	24	10.4
GL1BC-10B1U	27	30	22.5	24	10.4
GL1BC-12B1U	27	30	22.5	24	12.3
GL1BC-16B1U	41	45	38.0	40	16.1
GL1BC-20B1U	41	45	38.0	40	19.3
GL1BC-24B1U	59	65	52.0	55	25.7
GL1BC-28B1U	59	65	52.0	55	28.3
GL1BC-32B1U	59	65	52.0	55	29.6

Product Code / Chain No. (One Part)	F	G	H	I	J
GL1BC-0531U	4	9.3	3.8	5.8	6.8
GL1BC-06B1U	4	9.3	5.6	8.7	9.9
GL1BC-0831U	4	10.8	4.7	7.4	8.3
GL1BC-0841U	5	11.8	6.3	9.8	11.2
GL1BC-0851U	5	12.8	6.3	10.2	11.3
GL1BC-08B1U	5	12.8	7.6	11.5	12.7
GL1BC-0861U	6	15.4	6.3	10.3	11.7
GL1BC-10B1U	6	15.4	9.5	13.5	14.8
GL1BC-12B1U	7	16.9	11.5	15.9	17.5
GL1BC-16B1U	9	24.4	16.0	25.7	26.8
GL1BC-20B1U	11	27.5	19.0	29.3	31.2
GL1BC-24B1U	16	36.5	24.5	38.2	40.1
GL1BC-28B1U	17	41.5	30.0	46.9	48.9
GL1BC-32B1U	19	44.5	30.0	47.3	50.5

Product Code / Chain No. (One Part)	Carrier Profile**	Chain Pitch
GL1BC-0531U	WSC-C3024*	3/8" x 5/32"
GL1BC-06B1U	WSC-C3024*	3/8" x 7/32"
GL1BC-0831U	WSC-C3024*	½" x 3/16"
GL1BC-0841U	WSC-C3024*	½" x ¼"
GL1BC-0851U	WSC-C3024*	½" x ¼"
GL1BC-08B1U	WSC-C3024*	½" x 5/16"
GL1BC-0861U	WSC-C3024*	5/8" x ¼"
GL1BC-10B1U	WSC-C3024*	5/8" x 3/8"
GL1BC-12B1U	WSC-C3024*	¾" x 7/16"
GL1BC-16B1U	WSC-C4540	1" x 17mm
GL1BC-20B1U	WSC-C4540	1¼" x ¾"
GL1BC-24B1U	WSC-C6555	1½" x 1"
GL1BC-28B1U	WSC-C6555	1¾" x 31mm
GL1BC-32B1U	WSC-C6555	2" x 31mm

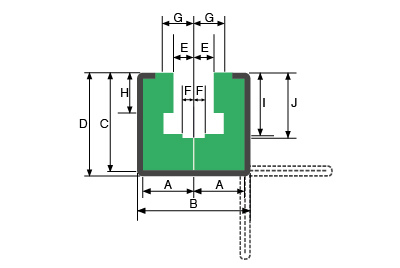

Dimensional Drawing (Two Part):

Stock Availability:

Sizes are available in various dimensions. Please refer to the dimensional drawing above and the corresponding table below for details.

Product Code / Chain No. (Two Part)	A	B	C	D	E	F	G	H	I	J	Carrier Profile**	Chain Pitch
GL1BC2-0531U	13.5	30	22.5	24	3.3	2	4.65	3.8	5.8	6.8	WSC-C3024*	3/8" x 5/32"
GL1BC2-06B1U	13.5	30	22.5	24	3.3	2	4.65	5.6	8.7	9.9	WSC-C3024*	3/8" x 7/32"
GL1BC2-0831U	13.5	30	22.5	24	4.0	2	5.4	4.7	7.4	8.3	WSC-C3024*	½" x 3/16"
GL1BC2-0841U	13.5	30	22.5	24	4.0	2.5	5.9	6.3	9.8	11.2	WSC-C3024*	½" x ¼"
GL1BC2-0851U	13.5	30	22.5	24	4.35	2.5	6.4	6.3	10.2	11.3	WSC-C3024*	½" x ¼"
GL1BC2-08B1U	13.5	30	22.5	24	4.35	2.5	6.4	7.6	11.5	12.7	WSC-C3024*	½" x 5/16"
GL1BC2-0861U	13.5	30	22.5	24	5.2	3	7.7	6.3	10.3	11.7	WSC-C3024*	5/8" x ¼"
GL1BC2-10B1U	13.5	30	22.5	24	5.2	3	7.7	9.5	13.5	14.8	WSC-C3024*	5/8" x 3/8"
GL1BC2-12B1U	13.5	30	22.5	24	6.15	3.5	8.45	11.5	15.9	17.5	WSC-C3024*	¾" x 7/16"
GL1BC2-16B1U	20.5	45	38.0	40	8.05	4.5	12.2	16.0	25.7	26.8	WSC-C4540	1" x 17mm
GL1BC2-20B1U	20.5	45	38.0	40	9.65	5.5	13.75	19.0	29.3	31.2	WSC-C4540	1¼" x ¾"
GL1BC2-24B1U	29.5	65	52.0	55	12.85	8	18.25	24.5	38.2	40.1	WSC-C6555	1½" x 1"
GL1BC2-28B1U	29.5	65	52.0	55	14.15	8.5	20.75	30.0	46.9	48.9	WSC-C6555	1¾" x 31mm
GL1BC2-32B1U	29.5	65	52.0	55	14.8	9.5	22.25	30.0	47.3	50.5	WSC-C6555	2" x 31mm

Product Code / Chain No. (Two Part)	F	G	H	I	J
GL1BC2-0531U	2	4.65	3.8	5.8	6.8
GL1BC2-06B1U	2	4.65	5.6	8.7	9.9
GL1BC2-0831U	2	5.4	4.7	7.4	8.3
GL1BC2-0841U	2.5	5.9	6.3	9.8	11.2
GL1BC2-0851U	2.5	6.4	6.3	10.2	11.3
GL1BC2-08B1U	2.5	6.4	7.6	11.5	12.7
GL1BC2-0861U	3	7.7	6.3	10.3	11.7
GL1BC2-10B1U	3	7.7	9.5	13.5	14.8
GL1BC2-12B1U	3.5	8.45	11.5	15.9	17.5
GL1BC2-16B1U	4.5	12.2	16.0	25.7	26.8
GL1BC2-20B1U	5.5	13.75	19.0	29.3	31.2
GL1BC2-24B1U	8	18.25	24.5	38.2	40.1
GL1BC2-28B1U	8.5	20.75	30.0	46.9	48.9
GL1BC2-32B1U	9.5	22.25	30.0	47.3	50.5

Product Code / Chain No. (Two Part)	Carrier Profile**	Chain Pitch
GL1BC2-0531U	WSC-C3024*	3/8" x 5/32"
GL1BC2-06B1U	WSC-C3024*	3/8" x 7/32"
GL1BC2-0831U	WSC-C3024*	½" x 3/16"
GL1BC2-0841U	WSC-C3024*	½" x ¼"
GL1BC2-0851U	WSC-C3024*	½" x ¼"
GL1BC2-08B1U	WSC-C3024*	½" x 5/16"
GL1BC2-0861U	WSC-C3024*	5/8" x ¼"
GL1BC2-10B1U	WSC-C3024*	5/8" x 3/8"
GL1BC2-12B1U	WSC-C3024*	¾" x 7/16"
GL1BC2-16B1U	WSC-C4540	1" x 17mm
GL1BC2-20B1U	WSC-C4540	1¼" x ¾"
GL1BC2-24B1U	WSC-C6555	1½" x 1"
GL1BC2-28B1U	WSC-C6555	1¾" x 31mm
GL1BC2-32B1U	WSC-C6555	2" x 31mm
