RSC1 - Precision Machined Wear Strip Profile

RSC1 - Machined Wear Strip Profile
The RSC1  wear strip profile is expertly machined to serve as a guide rail compatible with DIN 766 link chains. If needed, the RSC1  can be provided alongside a carrier profile.

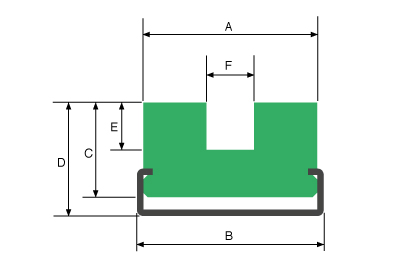

Dimensional Drawing:
RSC1 Dimensional Drawing

Availability:

Offered in a variety of sizes. Please consult the dimensional drawing above and the table below for detailed measurements.

Product Code A B C D
RSC1-6 30 28 15 20
RSC1-8 35 38 20 25
RSC1-10 45 38 25 30
RSC1-13 55 60 30 36
RSC1-16 65 60 35 41
*Carrier profiles are not included with the wear strips by default. Please specify if you require them when making an enquiry.
