GL1BCM - Precision Machined Chain Guide Wear Strip

The GL1BCM wear strip is expertly machined to serve as a guide rail tailored for DIN 8187 Simplex roller chains. If needed, this profile can be paired with a carrier profile for enhanced support.

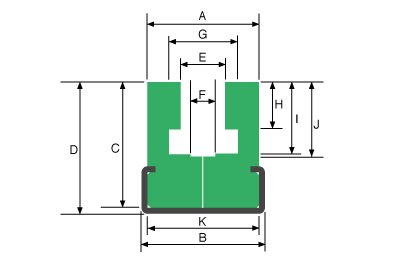

Dimensional Drawing:

Product Range:

The GL1BCM profile is supplied in two components and comes in a variety of sizes. Please consult the dimensional drawing above alongside the detailed measurements in the table below.

Product Code / Chain No.	A	B	C	D	E	F
GL1BCM-0531	20	20	19.5	21	6.6	4
GL1BCM-06B1	20	20	19.5	21	6.6	4
GL1BCM-0831	20	20	19.5	21	8.0	4
GL1BCM-0841	24	28	29.5	32	8.0	5
GL1BCM-0851	24	28	29.5	32	8.7	5
GL1BCM-08B1	24	28	29.5	32	8.7	5
GL1BCM-0861	30	28	29.5	32	10.4	6
GL1BCM-10B1	30	28	29.5	32	10.4	6
GL1BCM-12B1	40	38	40.5	43	12.3	7
GL1BCM-16B1	40	38	48.5	50	16.1	9
GL1BCM-20B1	50	60	52.5	55	19.3	11
GL1BCM-24B1	60	60	62.5	65	25.7	16
GL1BCM-38B1	60	60	77.5	80	28.3	17
GL1BCM-32B1	70	60	77.5	80	29.6	19

Product Code / Chain No.	G	H	I	J	K
GL1BCM-0531	9.3	3.8	5.8	6.8	17
GL1BCM-06B1	9.3	5.6	8.7	9.9	17
GL1BCM-0831	10.8	4.7	7.4	8.3	17
GL1BCM-0841	11.8	6.3	9.8	11.2	23
GL1BCM-0851	12.8	6.3	10.2	11.3	23
GL1BCM-08B1	12.8	7.6	11.5	12.7	23
GL1BCM-0861	15.4	6.3	10.3	11.7	23
GL1BCM-10B1	15.4	9.5	13.5	14.8	23
GL1BCM-12B1	16.9	11.5	15.9	17.5	33
GL1BCM-16B1	24.4	16.0	25.7	26.8	33
GL1BCM-20B1	27.5	19.0	29.3	31.2	55
GL1BCM-24B1	36.5	24.5	38.2	40.1	55
GL1BCM-38B1	41.5	30.0	46.9	48.9	55
GL1BCM-32B1	44.5	30.0	47.3	50.5	55

Product Code / Chain No.	Carrier Profile*	Chain Pitch
GL1BCM-0531	WSC-C2010	3/8" x 5/32"
GL1BCM-06B1	WSC-C2010	3/8" x 7/32"
GL1BCM-0831	WSC-C2010	½" x 3/16"
GL1BCM-0841	WSC-C2816	½" x ¼"
GL1BCM-0851	WSC-C2816	½" x ¼"
GL1BCM-08B1	WSC-C2816	½" x 5/16"
GL1BCM-0861	WSC-C2816	5/8" x ¼"
GL1BCM-10B1	WSC-C2816	5/8" x 3/8"
GL1BCM-12B1	WSC-C3818	¾" x 7/16"
GL1BCM-16B1	WSC-C3818	1" x 17mm
GL1BCM-20B1	WSC-C6020	1¼" x ¾"
GL1BCM-24B1	WSC-C6020	1½" x 1"
GL1BCM-28B1	WSC-C6020	1¾" x 31mm
GL1BCM-32B1	WSC-C6020	2" x 31mm

Product Code / Chain No.	A	B	C	D	E	F	G	H	I	J	K	Carrier Profile*	Chain Pitch
GL1BCM-0531	20	20	19.5	21	6.6	4	9.3	3.8	5.8	6.8	17	WSC-C2010	3/8" x 5/32"
GL1BCM-06B1	20	20	19.5	21	6.6	4	9.3	5.6	8.7	9.9	17	WSC-C2010	3/8" x 7/32"
GL1BCM-0831	20	20	19.5	21	8.0	4	10.8	4.7	7.4	8.3	17	WSC-C2010	½" x 3/16"
GL1BCM-0841	24	28	29.5	32	8.0	5	11.8	6.3	9.8	11.2	23	WSC-C2816	½" x ¼"
GL1BCM-0851	24	28	29.5	32	8.7	5	12.8	6.3	10.2	11.3	23	WSC-C2816	½" x ¼"
GL1BCM-08B1	24	28	29.5	32	8.7	5	12.8	7.6	11.5	12.7	23	WSC-C2816	½" x 5/16"
GL1BCM-0861	30	28	29.5	32	10.4	6	15.4	6.3	10.3	11.7	23	WSC-C2816	5/8" x ¼"
GL1BCM-10B1	30	28	29.5	32	10.4	6	15.4	9.5	13.5	14.8	23	WSC-C2816	5/8" x 3/8"
GL1BCM-12B1	40	38	40.5	43	12.3	7	16.9	11.5	15.9	17.5	33	WSC-C3818	¾" x 7/16"
GL1BCM-16B1	40	38	48.5	50	16.1	9	24.4	16.0	25.7	26.8	33	WSC-C3818	1" x 17mm
GL1BCM-20B1	50	60	52.5	55	19.3	11	27.5	19.0	29.3	31.2	55	WSC-C6020	1¼" x ¾"
GL1BCM-24B1	60	60	62.5	65	25.7	16	36.5	24.5	38.2	40.1	55	WSC-C6020	1½" x 1"
GL1BCM-28B1	60	60	77.5	80	28.3	17	41.5	30.0	46.9	48.9	55	WSC-C6020	1¾" x 31mm
GL1BCM-32B1	70	60	77.5	80	29.6	19	44.5	30.0	47.3	50.5	55	WSC-C6020	2" x 31mm

* Carrier profiles are not included with the wear strip by default. Please specify if required when making an enquiry.
