GR1GC - Precision Machined Chain Guide Wear Strip

The GR1GC is a machined wear strip profile designed specifically to serve as a guide rail for DIN 8187 Simplex roller chains. We can also provide this profile with an optional carrier profile upon request.

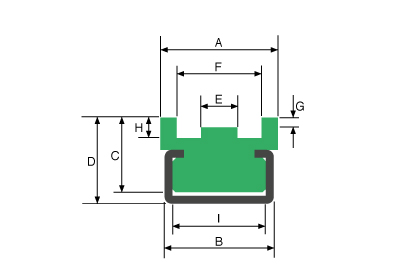

Dimensional Drawing:

Product Range:

We stock a variety of sizes to suit different chain specifications. Please consult the dimensional drawing above alongside the detailed measurements in the tables below to select the appropriate size.

Product Code / Chain No.	A	B	C	D	E
GR1GC-06B1	20	20	14	17	3.8
GR1GC-0831	20	20	14	17	3.0
GR1GC-0851	22	20	14	17	4.5
GR1GC-08B1	25	20	16	20	5.7
GR1GC-0861	25	20	16	20	4.1
GR1GC-10B1	28	28	16	20	7.4
GR1GC-12B1	30	28	18	22	9.2
GR1GC-16B1	42	38	25	30	15.0
GR1GC-20B1	50	38	30	35	16.8

Product Code / Chain No.	F	G	H	I
GR1GC-06B1	13.0	1.1	2.6	17
GR1GC-0831	12.4	1.4	3.0	17
GR1GC-0851	15.1	1.6	3.8	17
GR1GC-08B1	16.3	1.6	3.8	17
GR1GC-0861	16.1	2.1	4.7	17
GR1GC-10B1	19.2	2.1	4.7	24
GR1GC-12B1	21.8	2.8	5.2	24
GR1GC-16B1	33.8	3.3	6.3	33
GR1GC-20B1	40.0	4.0	8.2	33

Product Code / Chain No.	Carrier Profile*	Chain Pitch
GR1GC-06B1	WSC-C2010	3/8" x 7/32"
GR1GC-0831	WSC-C2010	½" x 3/16"
GR1GC-0851	WSC-C2010	½" x ¼"
GR1GC-08B1	WSC-C2010	½" x 5/16"
GR1GC-0861	WSC-C2010	5/8" x ¼"
GR1GC-10B1	WSC-C2812	5/8" x 3/8"
GR1GC-12B1	WSC-C2812	¾" x 7/16"
GR1GC-16B1	WSC-C3818	1" x 17mm
GR1GC-20B1	WSC-C3818	1¼" x ¾"

Product Code / Chain No.	A	B	C	D	E	F	G	H	I	Carrier Profile*	Chain Pitch
GR1GC-06B1	20	20	14	17	3.8	13.0	1.1	2.6	17	WSC-C2010	3/8" x 7/32"
GR1GC-0831	20	20	14	17	3.0	12.4	1.4	3.0	17	WSC-C2010	½" x 3/16"
GR1GC-0851	22	20	14	17	4.5	15.1	1.6	3.8	17	WSC-C2010	½" x ¼"
GR1GC-08B1	25	20	16	20	5.7	16.3	1.6	3.8	17	WSC-C2010	½" x 5/16"
GR1GC-0861	25	20	16	20	4.1	16.1	2.1	4.7	17	WSC-C2010	5/8" x ¼"
GR1GC-10B1	28	28	16	20	7.4	19.2	2.1	4.7	24	WSC-C2812	5/8" x 3/8"
GR1GC-12B1	30	28	18	22	9.2	21.8	2.8	5.2	24	WSC-C2812	¾" x 7/16"
GR1GC-16B1	42	38	25	30	15.0	33.8	3.3	6.3	33	WSC-C3818	1" x 17mm
GR1GC-20B1	50	38	30	35	16.8	40.0	4.0	8.2	33	WSC-C3818	1¼" x ¾"

* Carrier profiles are not included with the wear strip by default. Please specify if you require these when making an enquiry.
